This project focused on developing fundamental skills in CAD and BIM, using the software programs AutoCAD and Revit. The assignment was to choose a house model from A-hus.se and recreate it, starting with drawing the floor plan and exterior elevations in AutoCAD. These drawings were then imported into Revit, where we transformed the 2D plans into a 3D model.
In Revit, we also learned how to furnish the interior, apply materials to walls, floors, and roofs, as well as generating various technical drawings and rendered images. Initially, I was unsure about how I would feel about this course, but it turned out to be a surprisingly enjoyable and rewarding experience.

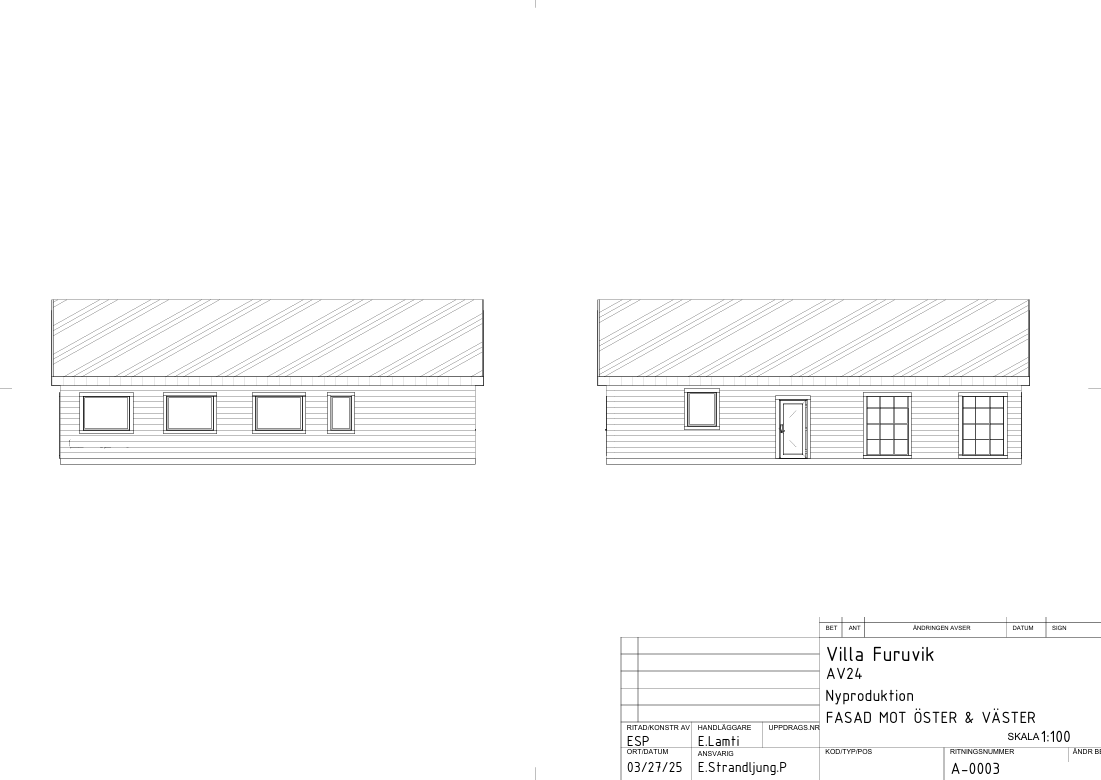

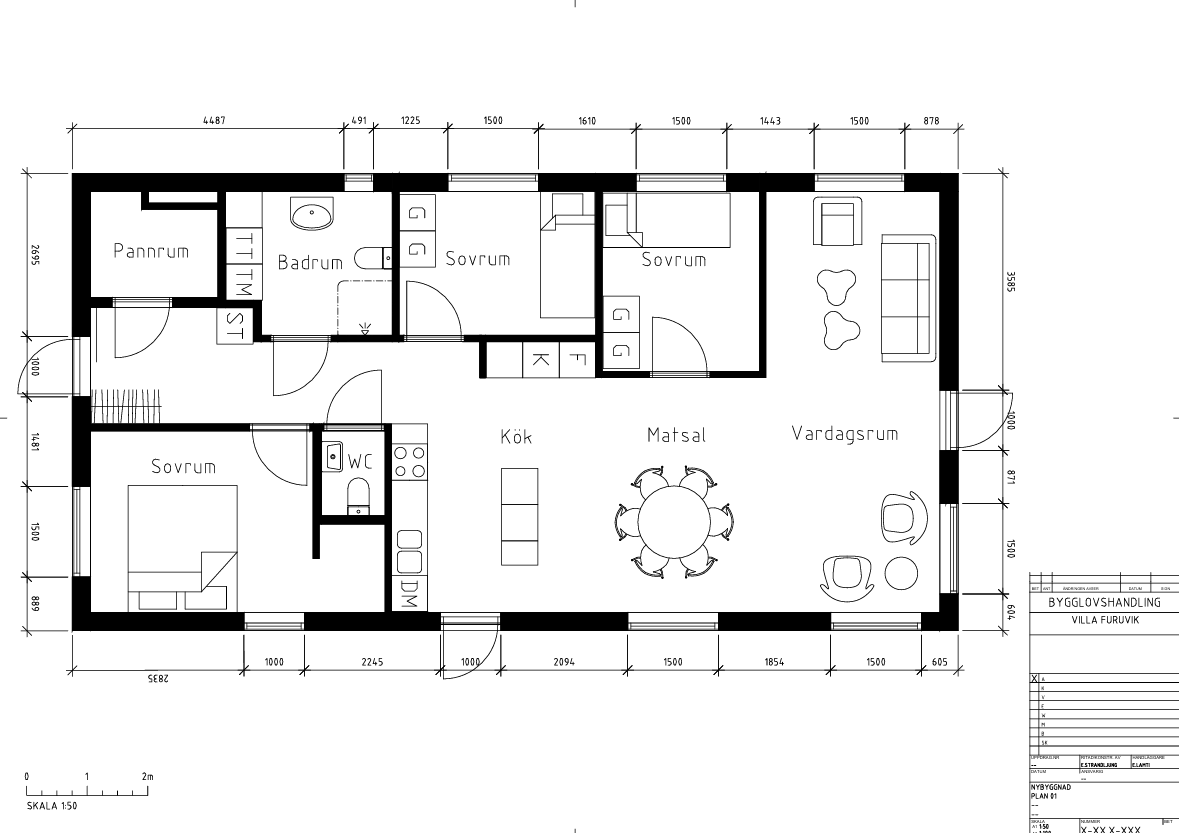

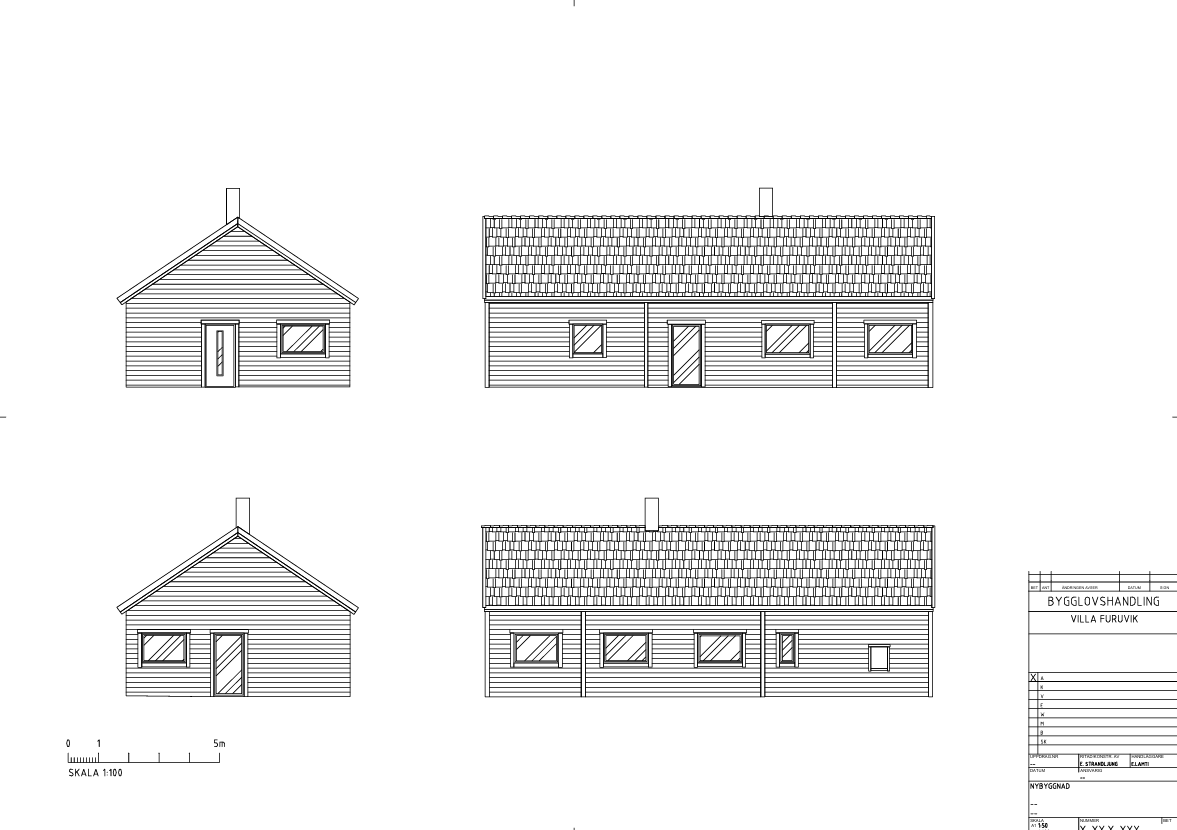

Done in AutoCAD

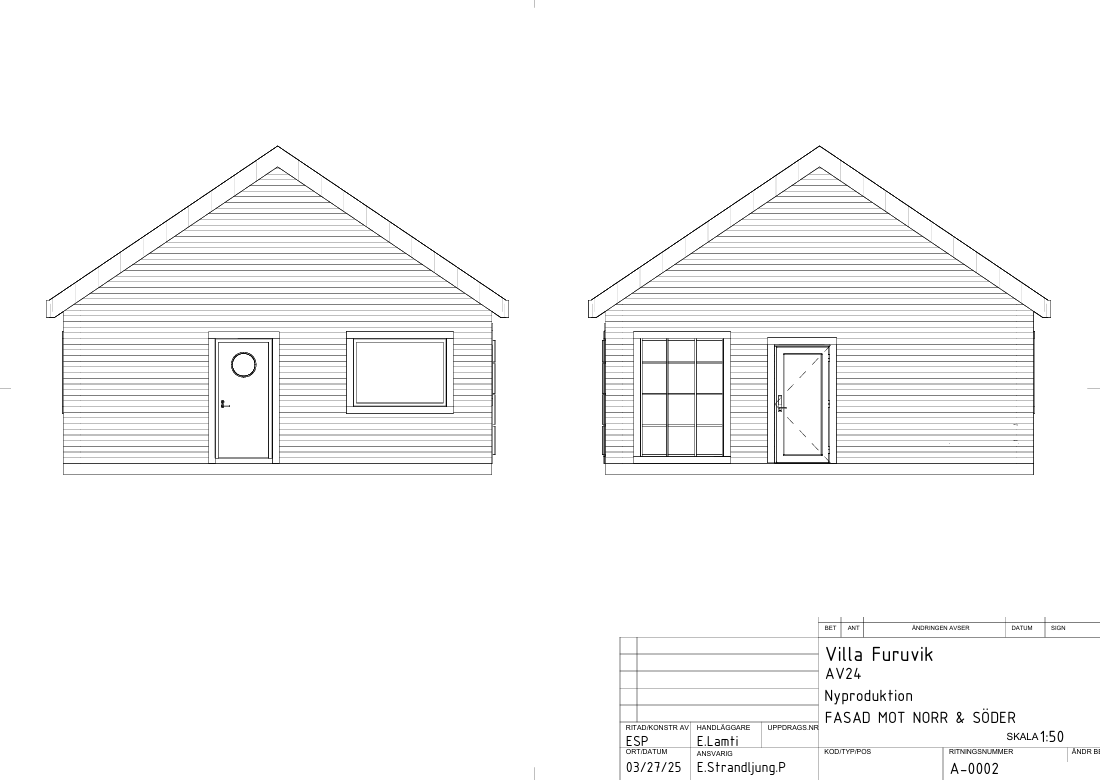

Done in AutoCAD

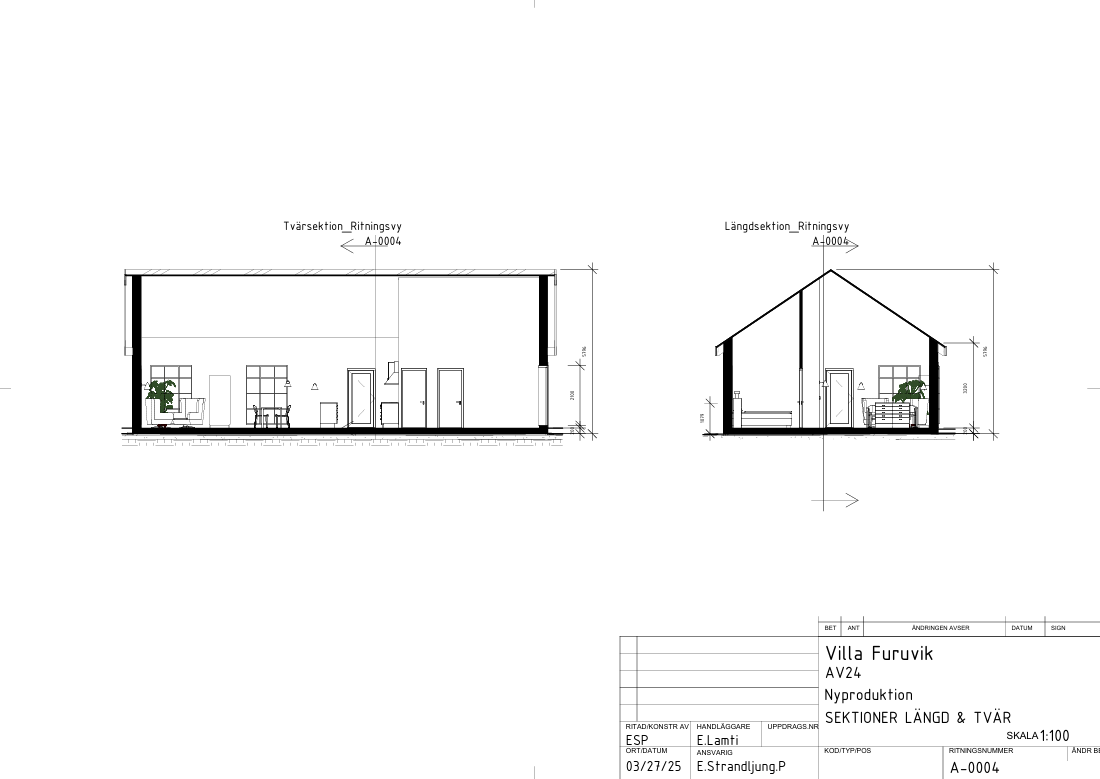

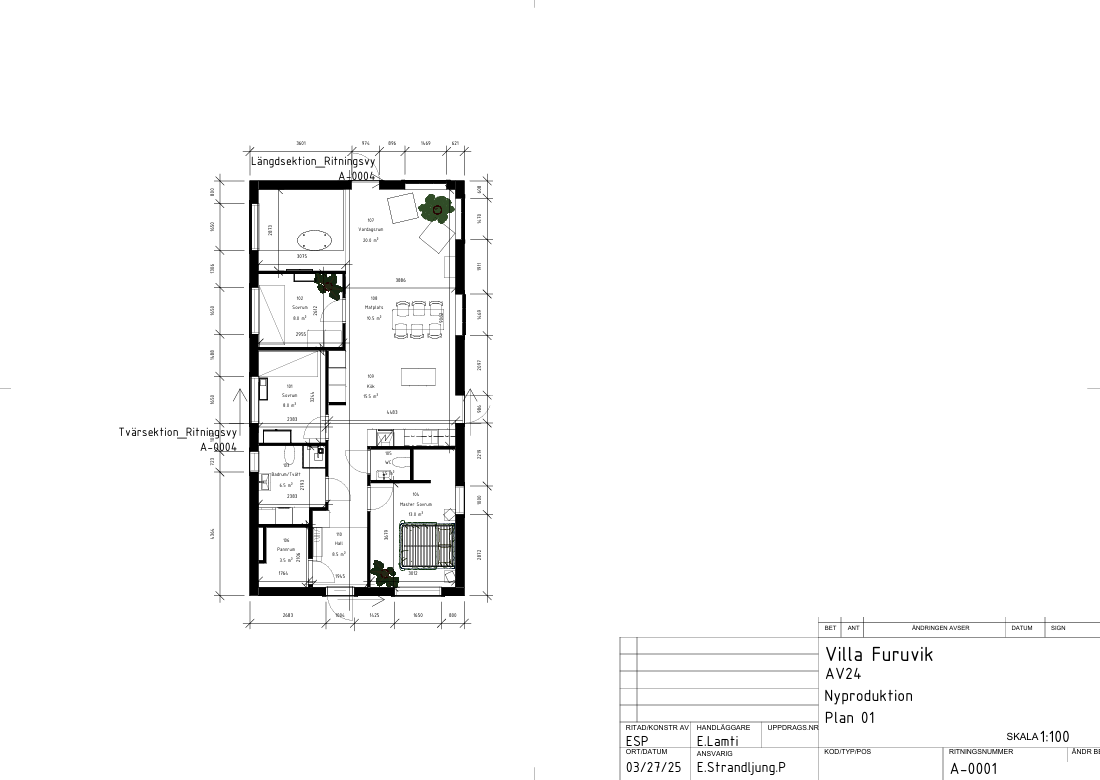

Done in Revit
Done in Revit
Done in Revit
Done in Revit
All pictures down below are rendered in Revit
